High-Magnification Rifle Scope ATH10-40X56

ATH10-40X56 High-Magnification Rifle Scope – Precision and Clarity for Long-Range Shooting

Key Features:

1. High Magnification Range (10-40x) : Offers adjustable magnification from 10x to 40x, providing exceptional clarity and precision for long-range target acquisition.

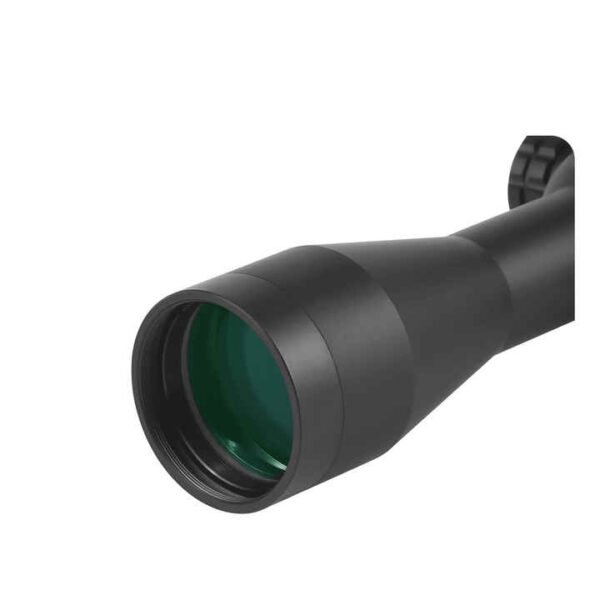

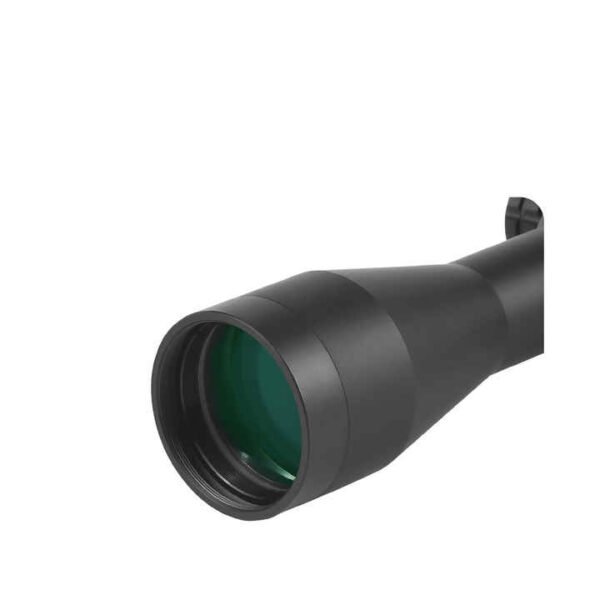

2. Large Objective Lens (56mm) : The oversized 56mm lens ensures maximum light transmission, delivering bright, clear images even in low-light conditions such as dawn or dusk.
3. Advanced Optical System : Fully multi-coated lenses reduce glare and enhance image sharpness, while the high-quality glass provides edge-to-edge clarity for superior performance.

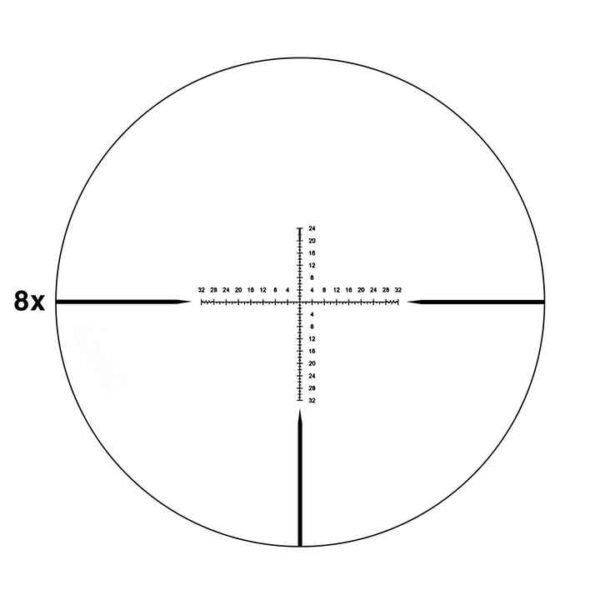

4. Precision Reticle Design : Equipped with an illuminated Mil-Dot reticle for accurate ranging, windage adjustments, and bullet drop compensation, ensuring pinpoint accuracy at any distance.
5. Adjustable Turrets : Lockable and resettable turrets allow for precise elevation and windage adjustments, enabling quick zeroing and reliable tracking during competitive shooting or hunting.
6. Durable Construction : Built with a rugged, shockproof aluminum alloy body that is fog-proof, waterproof, and nitrogen-purged for consistent performance in harsh weather conditions.
7. Parallax Adjustment : Side-focus parallax adjustment knob allows you to eliminate parallax error from 10 yards to infinity, ensuring accurate shots at varying distances.
8. Wide Field of View : Maintains a wide field of view even at higher magnifications, making it easier to track moving targets and maintain situational awareness.

How to Use:

1. Mount the Scope : Securely attach the ATH10-40X56 scope to your rifle using compatible rings and mounts. Ensure proper alignment with the bore.
2. Zero the Scope : Fire test shots at a known distance (e.g., 100 yards) and adjust the windage and elevation turrets until your point of impact matches your point of aim.
3. Adjust Magnification : Rotate the zoom ring to select the desired magnification level based on your target distance and environmental conditions.
4. Use the Illuminated Reticle : Activate the illuminated Mil-Dot reticle by turning the brightness control dial. Choose the appropriate brightness setting for optimal visibility without compromising concealment.
5. Compensate for Distance and Wind : Use the Mil-Dot markings to estimate range, adjust for bullet drop, and account for wind drift to make precise long-range shots.
6. Eliminate Parallax Error : Adjust the side-focus parallax knob to ensure the reticle remains steady relative to the target, eliminating aiming errors caused by movement.
7. Maintenance : After use, clean the lenses with a microfiber cloth and store the scope in a protective case to prevent scratches or damage.

Specifications:

• Magnification Range : 10x – 40x
• Objective Lens Diameter : 56mm
• Tube Diameter : 30mm
• Reticle Type : Illuminated Mil-Dot (red and green illumination options)
• Field of View @ 100 Yards : 20ft (at 10x), 5ft (at 40x)
• Eye Relief : 3.5 inches
• Exit Pupil : 5.6mm (at 10x), 1.4mm (at 40x)
• Click Value : 1/8 MOA per click
• Parallax Adjustment : Adjustable from 10 yards to infinity
• Weatherproofing : Fog-proof, waterproof, nitrogen-purged
• Length : 14.5 inches
• Weight : 26 oz
• Package Includes :
  • 1x ATH10-40X56 Rifle Scope
  • 1x Lens Covers (front and rear)
  • 1x Microfiber Cleaning Cloth
  • 1x Hex Key for Turret Adjustment
  • 1x Instruction Manual

Benefits:

1. Superior Long-Range Accuracy : With its high magnification range and advanced reticle system, this scope excels in precision shooting scenarios, including competitive matches and varmint hunting.
2. Enhanced Low-Light Performance : The large 56mm objective lens captures more light, giving you a distinct advantage during early morning or late evening hunts when visibility is limited.
3. Durability in Harsh Conditions : Designed to withstand extreme weather, shocks, and vibrations, this scope is built to perform reliably in any environment.
4. Customizable Settings : Adjustable magnification, parallax correction, and illuminated reticles let you tailor the scope to your specific needs and preferences.
5. Ease of Use : Intuitive controls and precise turrets simplify adjustments, allowing shooters of all skill levels to achieve accurate results quickly.
6. Versatile Applications : Ideal for long-range target shooting, tactical training, big-game hunting, and pest control, offering versatility across various disciplines.
7. Professional-Quality Optics : The fully multi-coated lenses provide crystal-clear imaging, reducing eye strain and improving overall shooting experience.
